Shapping Machine

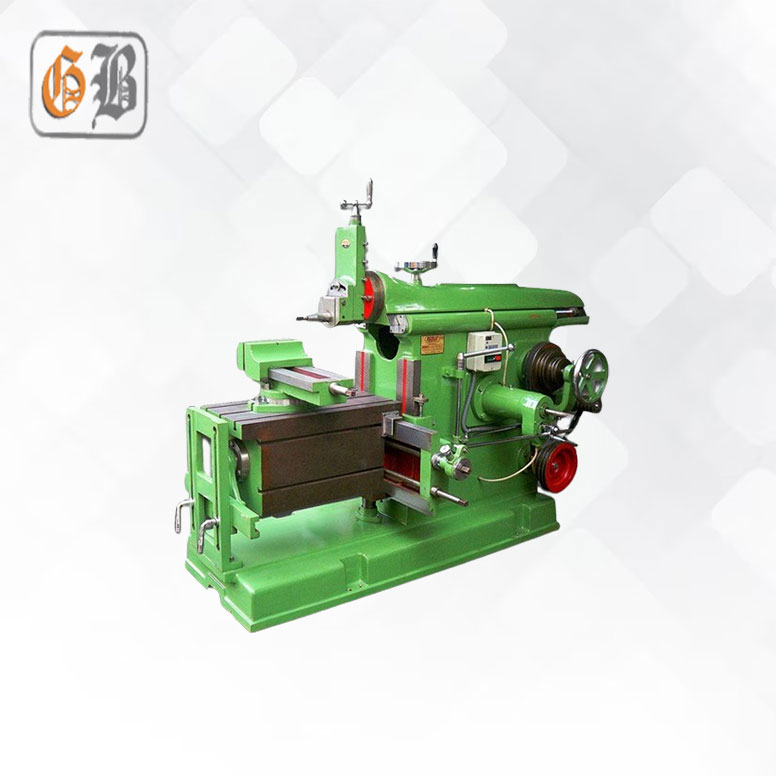

We are the leading supplier of shapping machines of all sizes for technical institutes as well as allied industries. We offer 24 Inches Heavy Duty Shaper Machines. It is widely used for metal shaping processes in several industrial manufacturing units. It produces high operational speed and output of our machines.

Machine Size 12" 18" 24" 30" 36"
Maximum stroke 14" 20" 26" 32" 38"
Len of Ram 26" 36" 50" 58" 66"
Max. dist. Of Table to Ram 9" 15" 19" 20" 20"
Min. dist. Of table to Ram 1/2" 2" 2" 2" 2"
Max. vertical travel to tool slide 5" 4" 7" 7" 7"
Len. And width to table top. 12"x9" 18"x12" 24"x15" 30 1/2"x\16" 36"x18"
Len and width of table slide 24"x10" 30"x11" 37 1/2"x12" 44"x\13" 48"x14"
Len of cross slide 24" 30" 37 1/2" 44" 48"
Width of Ram 8 1/2" 10" 12 1/2" 12 1/2" 13"
No of speeds 4 3 4 4 4
HP Required (1440) 1 2 2 3 5
