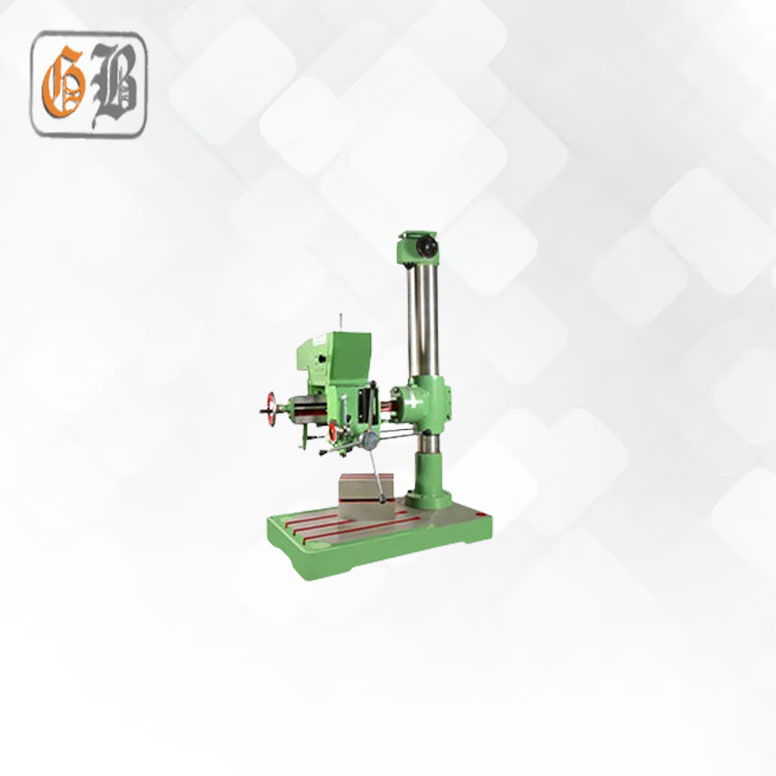

Drill Machine

We offer Drill Machine is highly demanded in the market for its noiseless operation that provides ease of drilling. In order to design this machine, we procure quality assured components and modern technology. Provided with an adequately ribbed base plate for stopping deflection, the Heavy Duty Drilling Machine is suitable for heavy duty works.

Features & Benefits :

  • Greater accuracy, capacity and reliability
  • The offered drilling machine is known for its application specific design.
  • Sturdy construction
  • Used for metal sheets, plastic and wood etc.
  • Affordable price
  • Long working life
Specification :
Drill Capacity Mild Steel 25 mm
Pillar Diameter 39/16" 90 mm
Spindle nose to table distance 6" 152 mm
Spindle nose to base distance 1100 mm
Distance from Spindle center to pillar Face 9" 235 mm
Taper in Spindle MT-3.MT-4
Number of Speed 8 Speed
Range of Speed (8) 96 x 3200 R.P.M
Base Size ( Machined Area) 28 x 16" 575 x 400 mm
Size of Table Square (8) 96 x 3200 RPM.
Size of Table Round 12" x 12" 285 mm
Spindle Travel 6" 152mm
Pillar Length 1422mm
Overall height with Pulley Guard 85" 1625 mm
V Belt Section B-49
Weight ( Approx) 200 Kg. (Approx)
Motor 1440 RPM 3phase 440 Volts 1 HP
